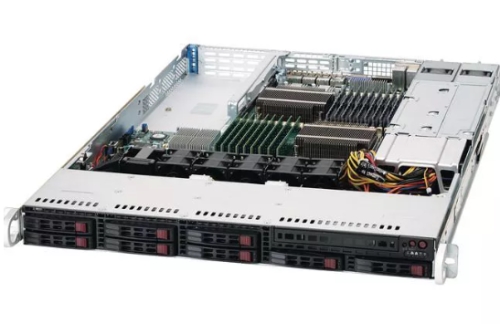

Supermicro AS-1122G-URF4+

Есть вопрос по товару?
Цена: 199630 руб
Наличие:ПОД ЗАКАЗ
Артикул: AS-1122G-URF4+
Производитель:SuperMicro
Доставка: Бесплатно по Москве!

Motherboard
Super H8DGU-LN4F+

Processor/Chipset
CPU
  • Dual 1944-pin Socket G34
  • Supports up to two 16/12/8/4-Core ready AMD Opteron™ 6000 Series processors
  • HT3.0 Link support
Chipset
  • AMD chipset SR5690 / SP5100
Note
  • Supports 6000 processors with Max ACP 80W (TDP 115W)

System Memory
Memory Capacity
  • 24 DIMM sockets
  • Support up to 768GB Registered ECC or 128GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 24 DIMMs
  • Quad channel memory bus
  • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
  • See Detailed Memory Support Matrix
Memory Type
  • DDR3 1600/1333/1066 MHz Registered ECC Unbuffered ECC/non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 1GB, 2GB, 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.35V or 1.5V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
SATA
  • AMD SP5100 (RAID 0, 1, 10)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM over LAN support
  • Winbond® WPCM450 BMC
Network Controllers
  • 2x Intel® 82576 controller, Quad-Port Gigabit Ethernet
  • 10/100/1000BASE-T support
VGA
  • Matrox G200eW 16MB DDR2
Super I/O
  • Winbond 83527HG chip
  • Winbond WPCM450 (BMC)

Expansion Slots
PCI-Express
  • 1x PCI-E x16 (Gen 2.0); 1x UIO

Input / Output
SATA
  • 6x SATA2.0 (3Gb/s) Ports
LAN
  • 4x RJ45 ports and 1x RJ45 Dedicated LAN supports IPMI
USB
  • 5x USB 2.0 ports
  • 2x Rear, 2x header, 1x Type A
VGA
  • 1x VGA port
Keyboard / Mouse
  • PS/2 keyboard and mouse ports
Serial Ports
  • 1 Fast UART 16550 serial port
  • 1 serial port header
Others
  • 1 UID

System BIOS
BIOS Type
  • 16Mb Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.2
  • ACPI 2.0
  • BIOS Rescue Hot Keys
  • USB Keyboard Support
  • Hardware BIOS Virus Protection
  • SMBIOS 2.3
Chassis
Form Factor
  • 1U Rackmount
Model

Dimensions
Height 1.7" (43mm)
Width 17.2" (437mm)
Depth 26.6" (676mm)
Gross Weight 46 lbs (19.45 kg)
Available Color Black

Front Panel
Buttons
  • Power On/Off Button
  • System Reset Button
LEDs
  • Power status
  • Hard drive activity
  • 2x Network activity
  • Overheat status
  • Powerfail
Ports
  • 2x USB & DB9 COM port tray

Drive Bays
Hot-swap 8x 2.5" SAS / SATA Hot-swap drive bays
SAS or enterprise SATA HDD only recommended

Peripheral Drives
DVD-ROM Slim DVD-ROM drive ( optional )

SAS Backplane
1x 1U SAS backplane w/ Enclosure Management
System Cooling
Fans 5x 40x56mm 4-pin PWM Fans
1x fans for AOC cooling (optional)

Power Supply
700W Redundant AC-DC high-efficiency power supply with PMBus and I2C
AC Voltage
  • 700W: 100 - 140 V, 50-60 Hz, 8.5-6 Amp
DC Output +5V standby
  • 3 Amp
DC Output +12V
  • 700W: 58 Amp @ 100-140V
With Power Distributor
  • +5V: 25 Amp
  • +3.3V: 12 Amp
  • -12V: 0.6 Amp
Certification Gold Level Certified   Gold Certified

PC Health Monitoring
CPU
  • Monitors CPU Core Voltages, +3.3V, +5V, ±12V, HyperTransport Link voltage, memory voltage, VBAT, Chipset voltage
  • CPU switching voltage regulator
FAN
  • Total up to 8-fan status tachometer monitoring
  • Status monitor for speed control
  • Stauts monitor for on/off control
  • Low noise fan speed control
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • Thermal Control for 8x Fan Connectors
  • I2C Temperature Sensing Logic
LED
  • CPU / System Overheat LED
  • Suspend-State Indicator LED
  • +5V Standby Alert LED
  • UID/Remote LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
